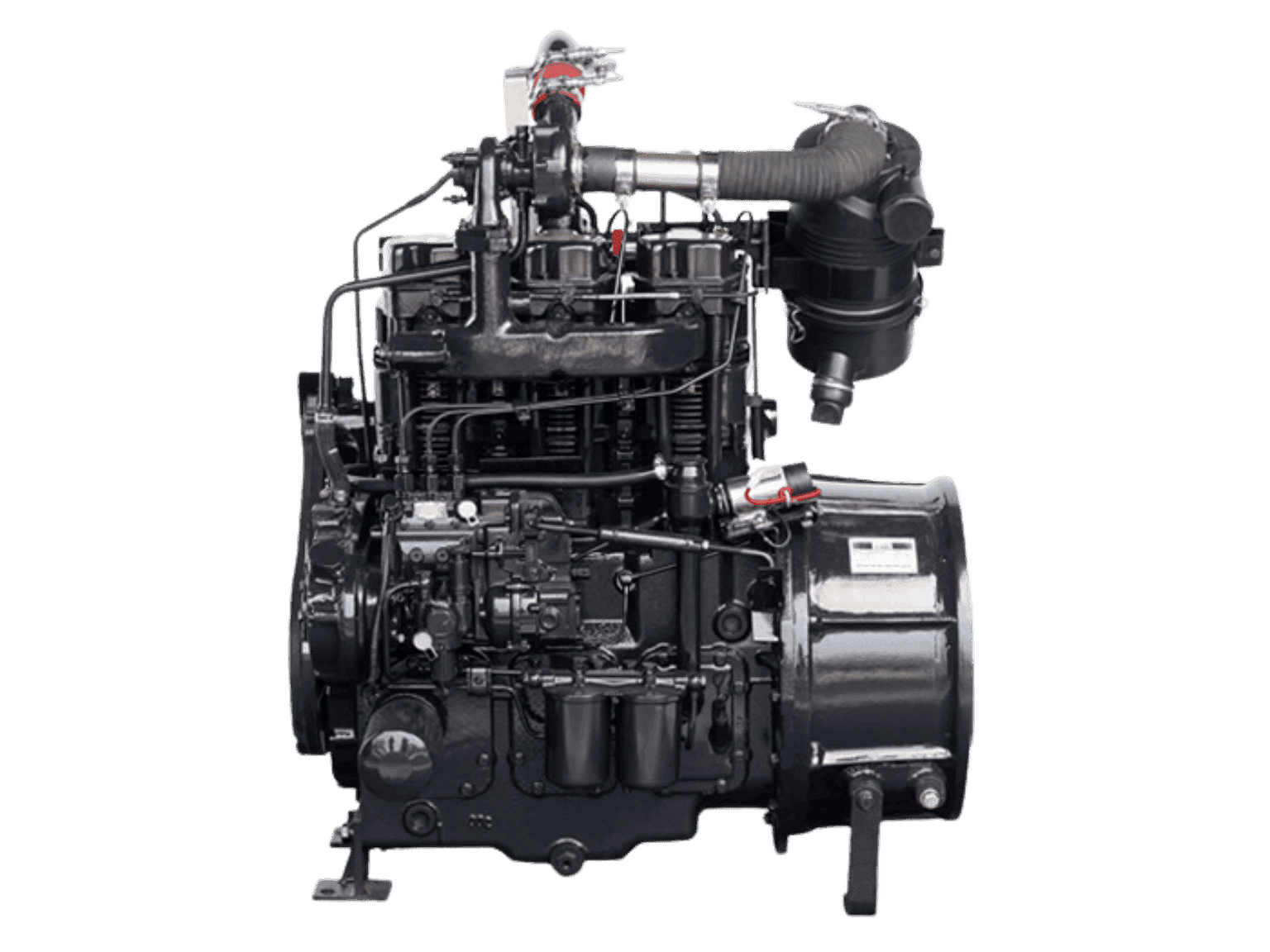

422-TC
This 3-cylinder, air-cooled industrial engine delivers an impressive 66 horsepower at 2300 rpm, making it a reliable choice for variable-speed industrial applications. With a bore of 100 mm and a stroke of 125 mm, the engine is engineered for efficient, high-performance operation. The turbocharged design enhances power delivery, offering superior performance and improved fuel efficiency. With a maximum torque of 232 Nm, this engine is built to handle heavy-duty tasks across industrial sectors. The air-cooled system eliminates the need for complex cooling solutions, reducing maintenance and making it ideal for rugged environments. Designed for durability and long-term reliability, this engine provides a cost-effective solution for industries requiring high power and variable-speed operation.
Technical Specification
| Cooling | Air cooled |
| Cylinders | 3 |
| Bore | 100 mm |
| Stroke | 125 mm |
| Horsepower | 66 hp |
| Engine RPM | 2300 rpm |
| Aspiration | Turbocharged |
| Maximum Torque | 232 Nm |
| Dry Weight | 430 kg |
| Dimensions Length | 1019 mm |
| Dimensions Width | 771 mm |
| Dimensions Height (Without Silencer) | 1031 mm |
| Dimensions Height (With Silencer) | - |
| HP @1500rpm | - |
| HP @1800rpm | - |
| HP @2000rpm | - |
| HP @2200rpm | - |
| Starting | - |
| Aspiration Type | - |
